Add compatible docking target port selector - #2304

Open
maddavo wants to merge 3 commits into
MuMech:devfrom
maddavo:feature/docking-port-selector
Open

Add compatible docking target port selector#2304
maddavo wants to merge 3 commits into
MuMech:devfrom
maddavo:feature/docking-port-selector

Conversation

@maddavo

@maddavo maddavo commented Sep 2, 2026

Copy link
Copy Markdown

Summary

  • add left/right controls to Docking Autopilot for cycling through docking ports on the target vessel
  • filter target ports against the vessel's current control-from-here docking port, including node type, multi-type, and gender compatibility
  • exclude already docked ports and disable selection while the docking autopilot is active
  • update both MechJeb's target controller and KSP's global vessel target so Docking Port Alignment Indicator and other docking aids observe the selection
  • show a short status when the target vessel is not yet loaded nearby

Testing

  • Release build of MechJeb2.csproj: 0 warnings, 0 errors
  • compatibility checks passed for matching/mismatched sizes, multi-type overlap, and gendered ports
  • manually tested in KSP 1.12.5 using a stable-compatible MechJeb 2.15.3 build with Docking Port Alignment Indicator 6.13.1; port cycling worked and DPAI followed the selected target port
  • existing MechJebLib test suite: 8,383 passed; 3 unrelated failures remained in untouched code (StaticTests.ToSITest, MainSailTinCanVacuum, and MainSailTinCanAtmo)

Screenshots

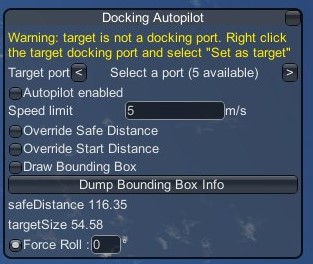

Target vessel selected, with five compatible ports available:

Docking Autopilot showing the target-port selector before a port is selected

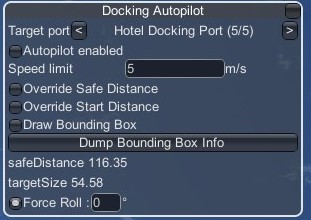

A compatible target port selected using the new arrow controls:

Docking Autopilot showing Hotel Docking Port selected as port 5 of 5
