Closes #1983.
Adds a Volume vis for 3D numeric datasets, using a single-pass WebGL2 ray marcher in Three.js. It has three modes: MIP, DVR and Iso. Heatmap remains the default tab.

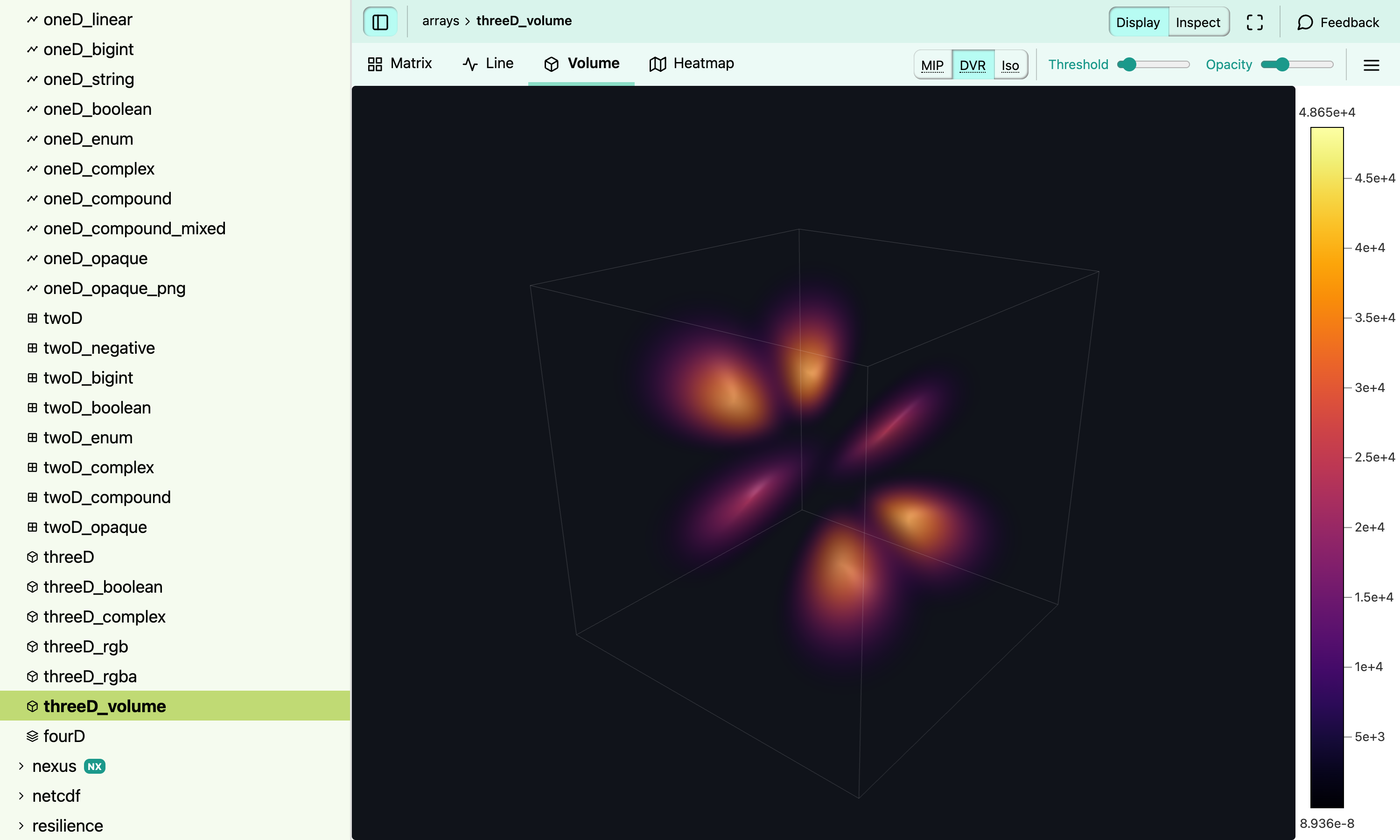

Examples are in Storybook under

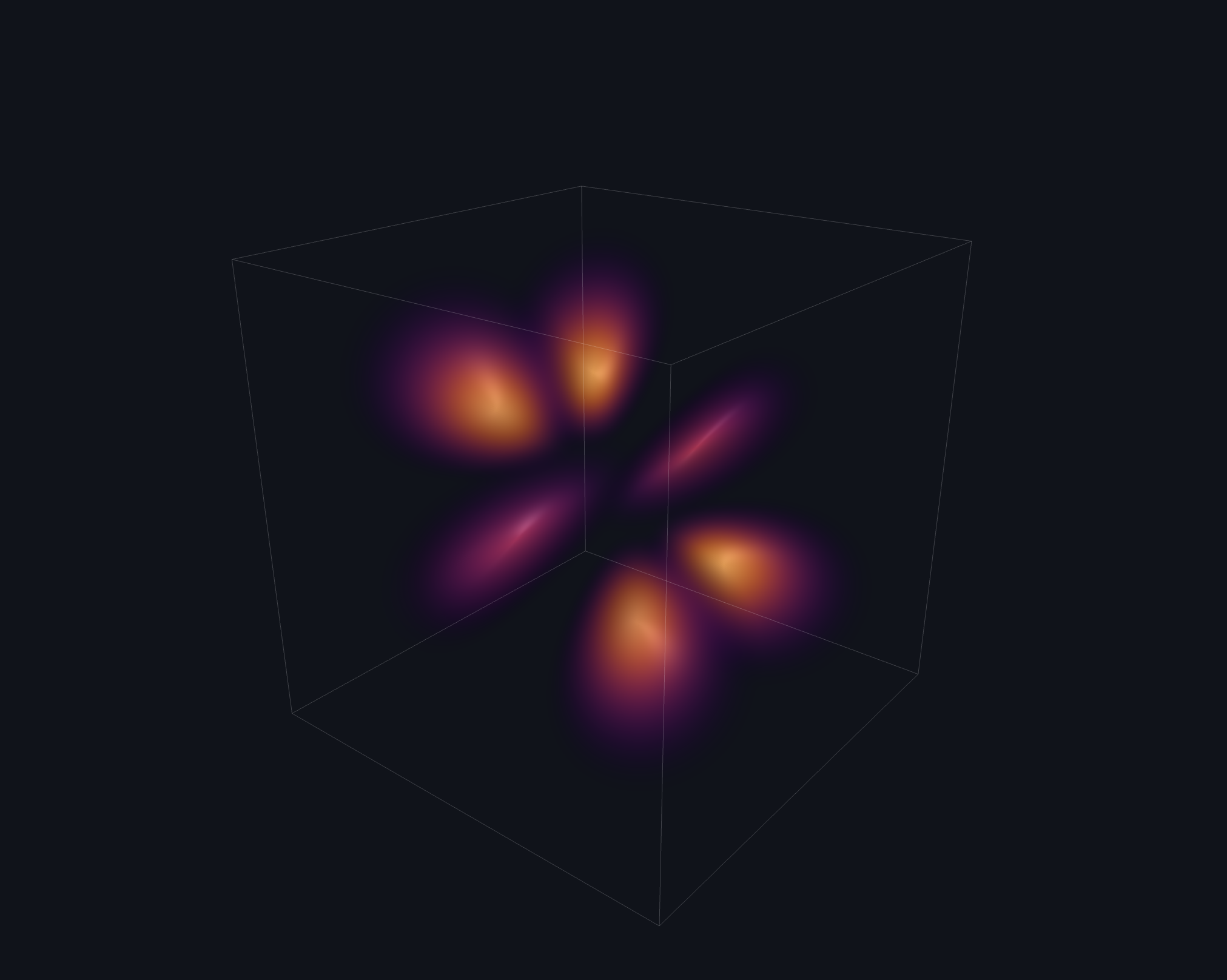

Visualizations/VolumeVis, and in the demo as/mock→arrays/threeD_volume.Orbital, DVR

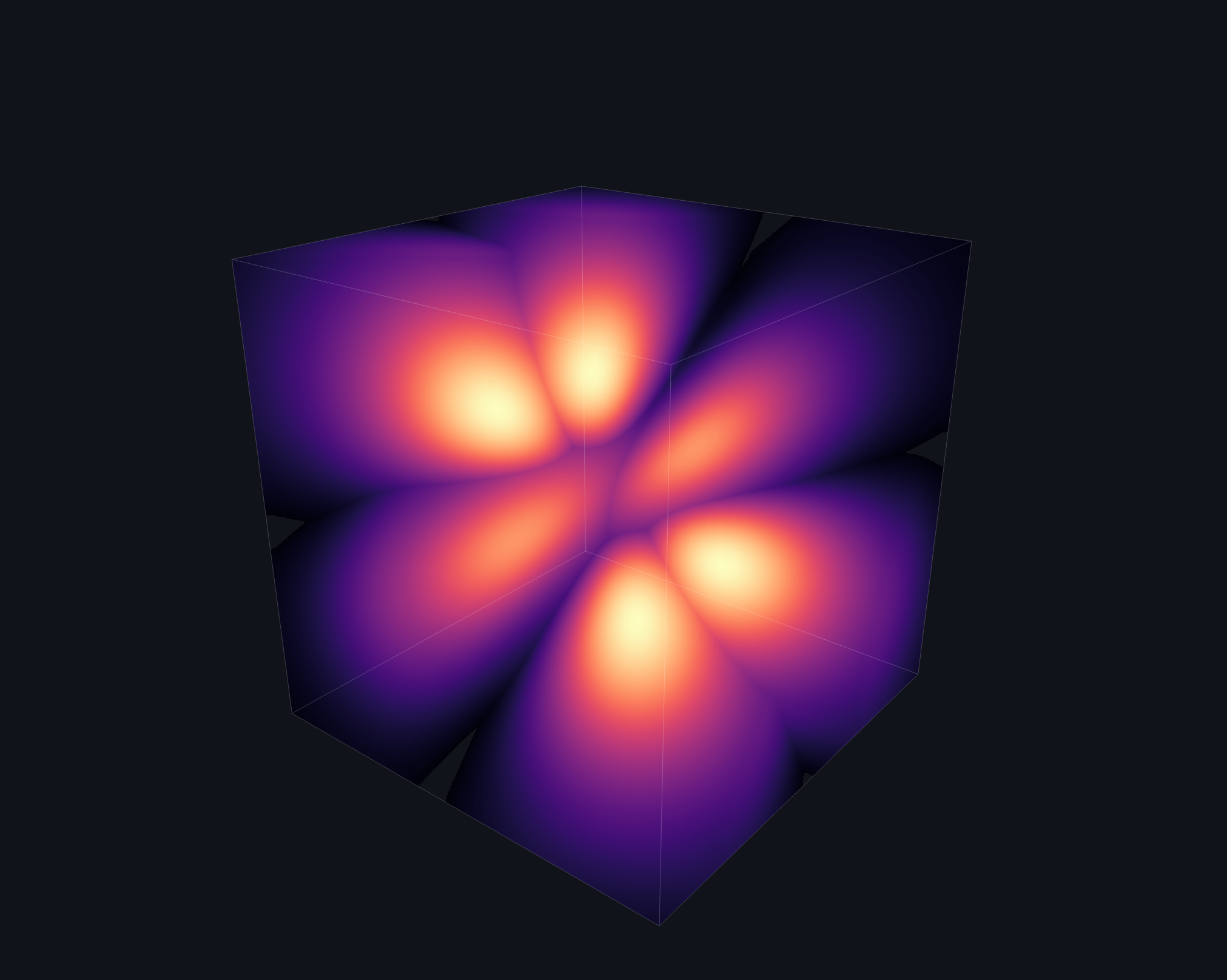

Orbital, MIP

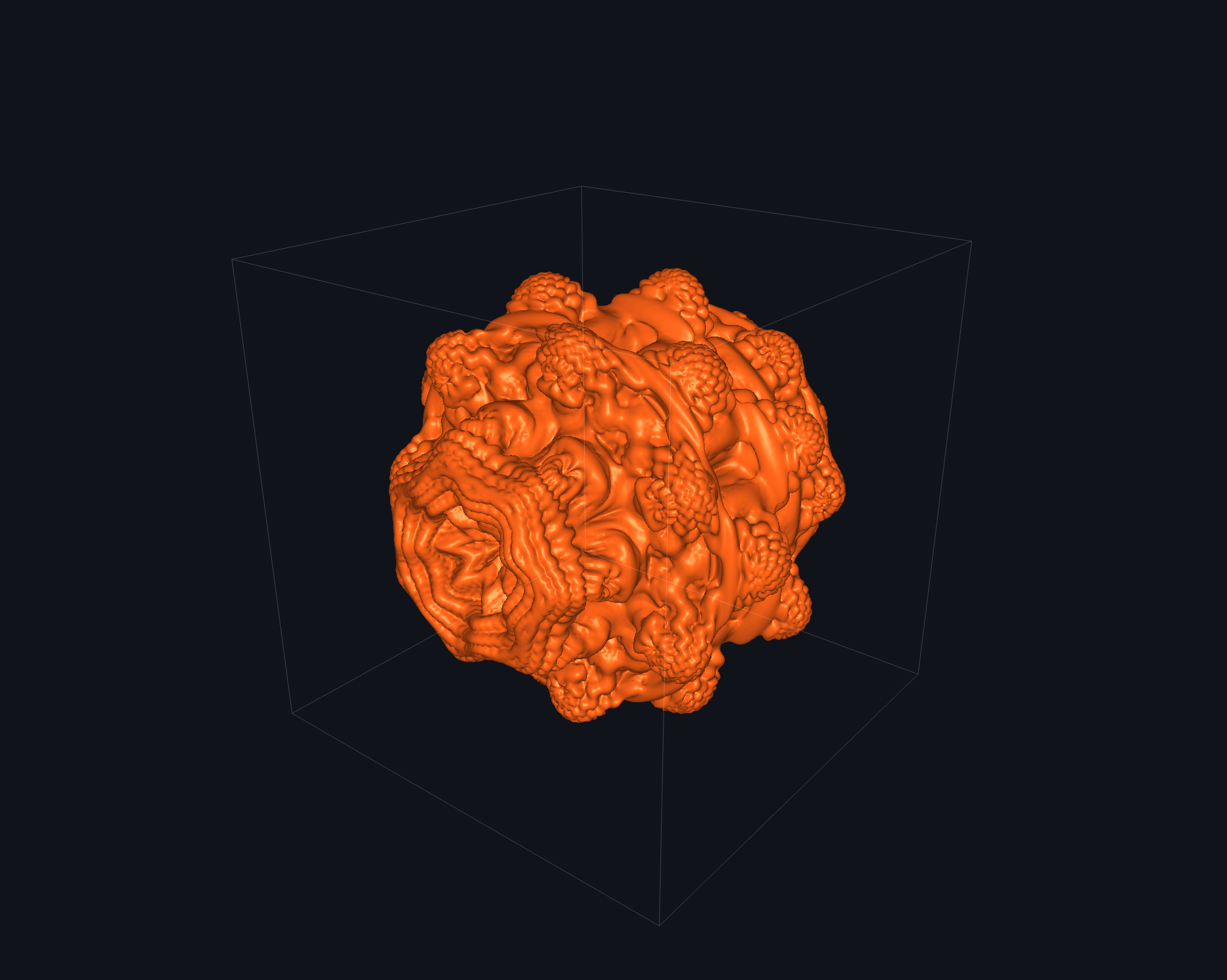

Mandelbulb, Iso

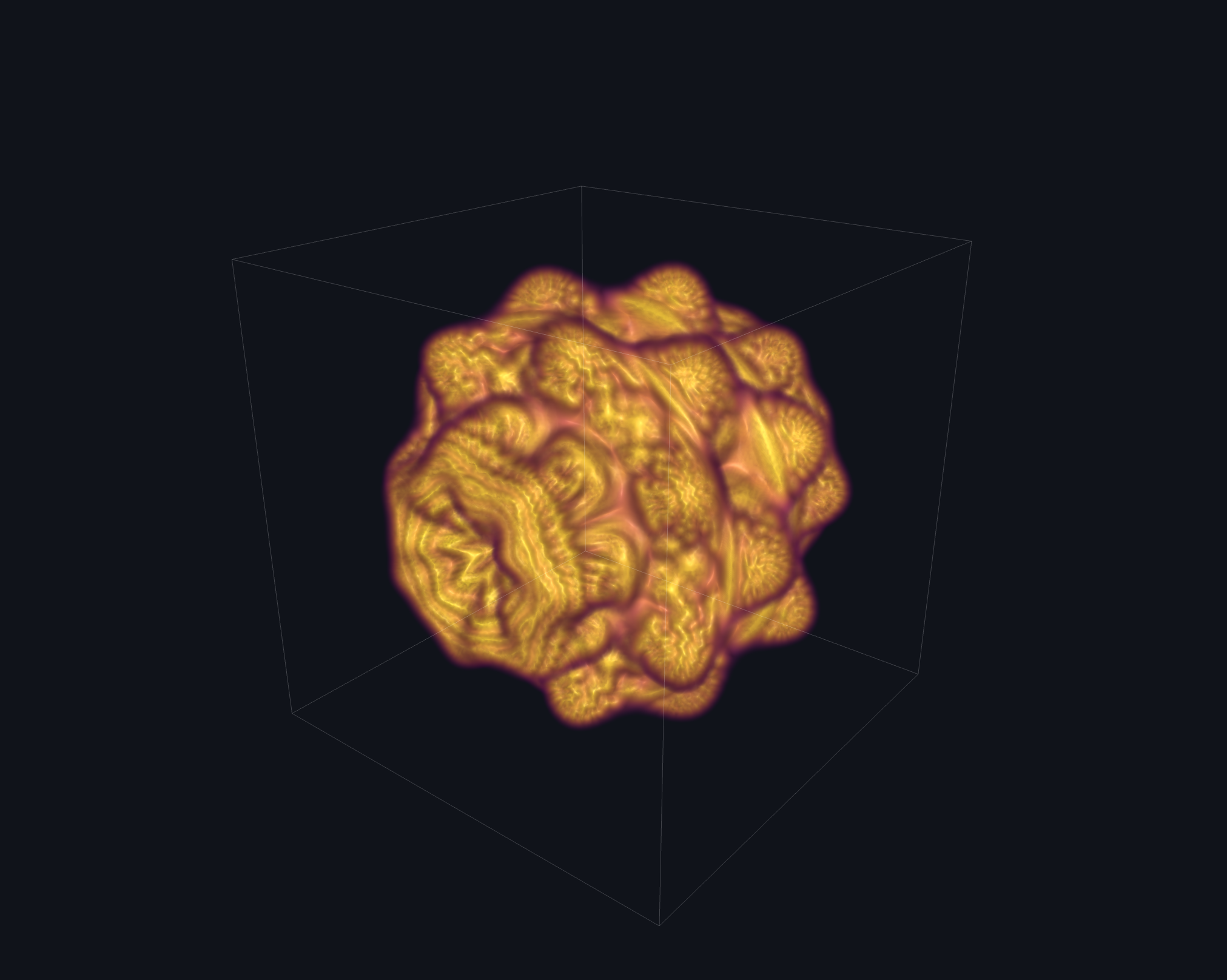

Mandelbulb, DVR

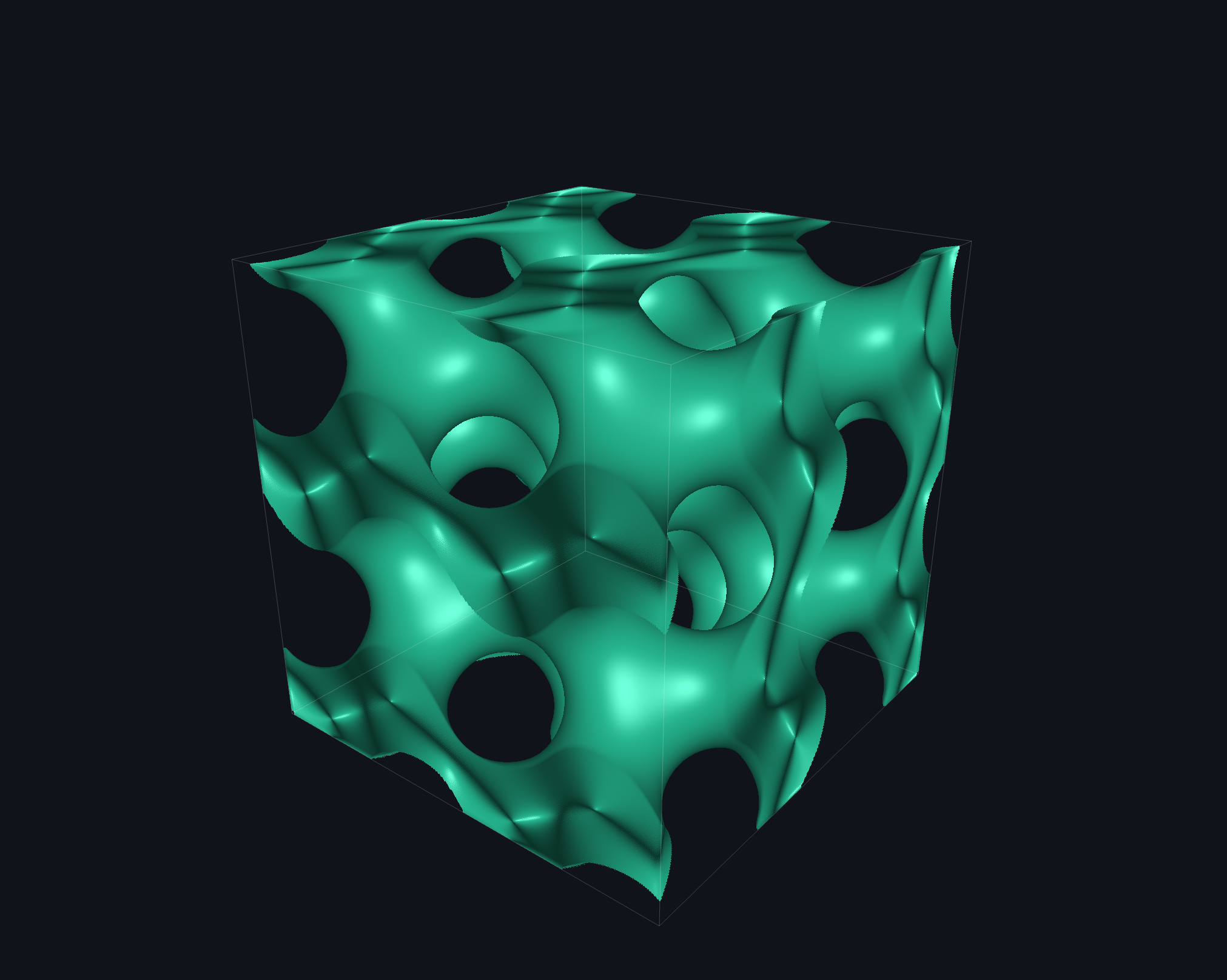

Gyroid, Iso

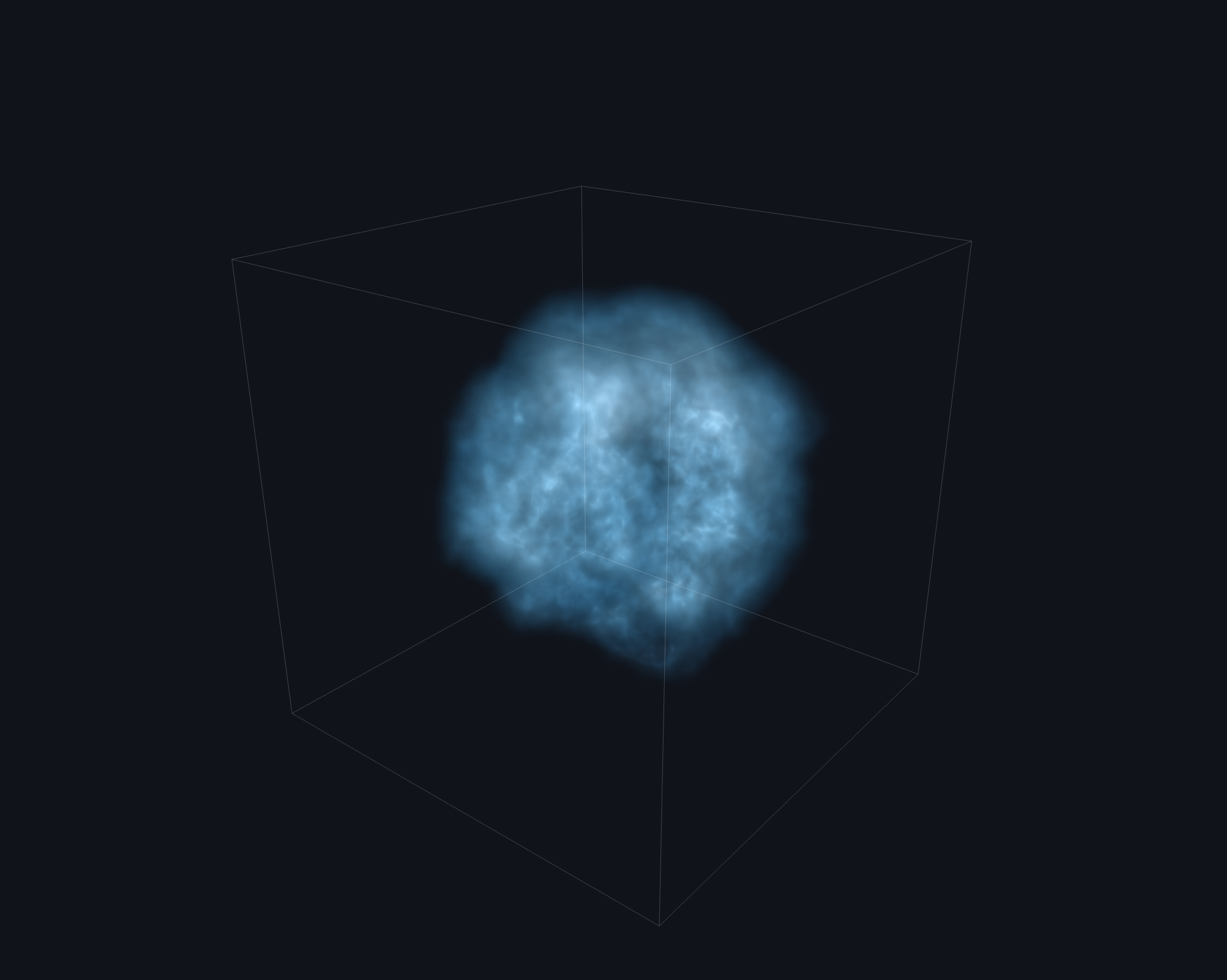

Turbulent cloud, DVR

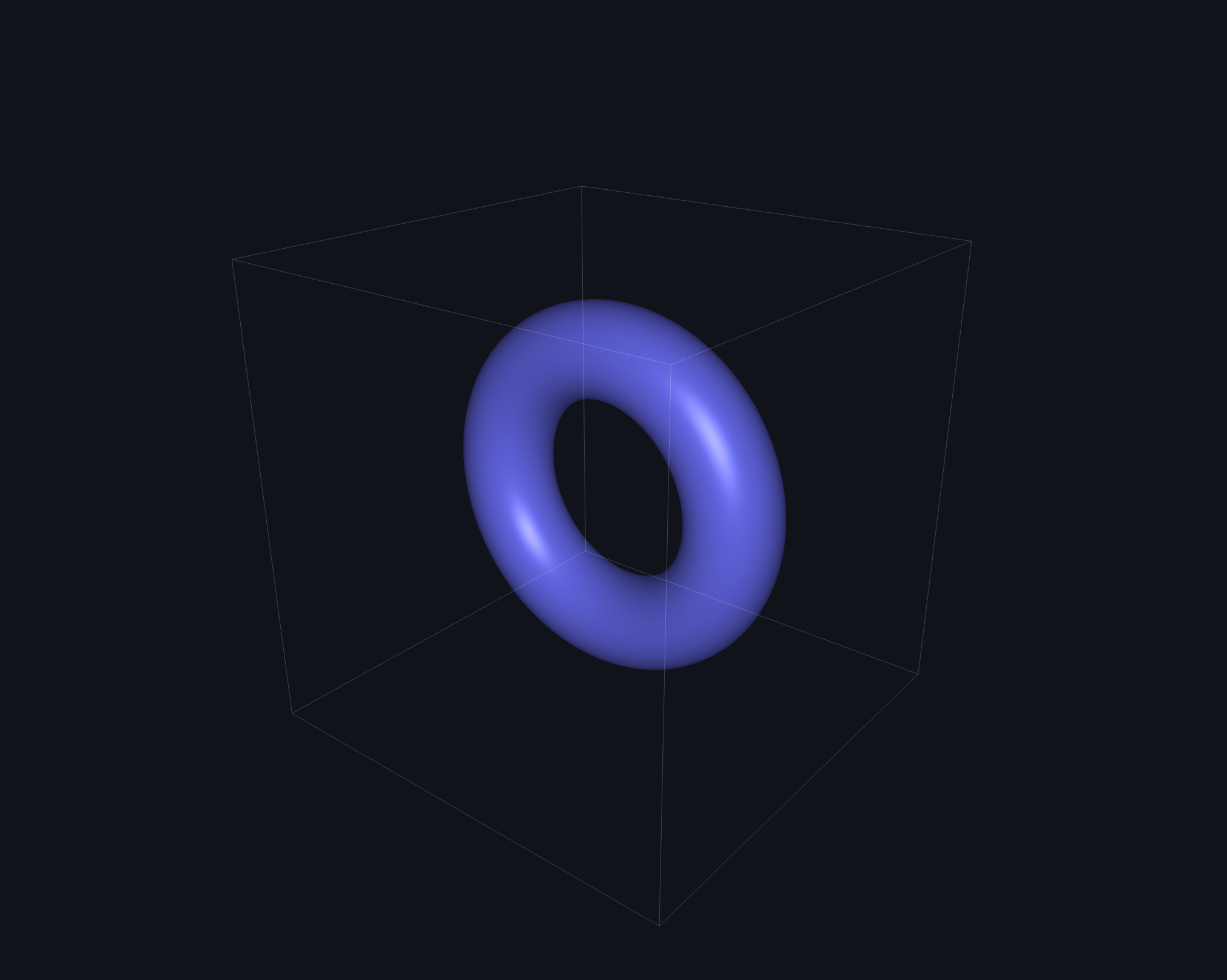

Torus, Iso

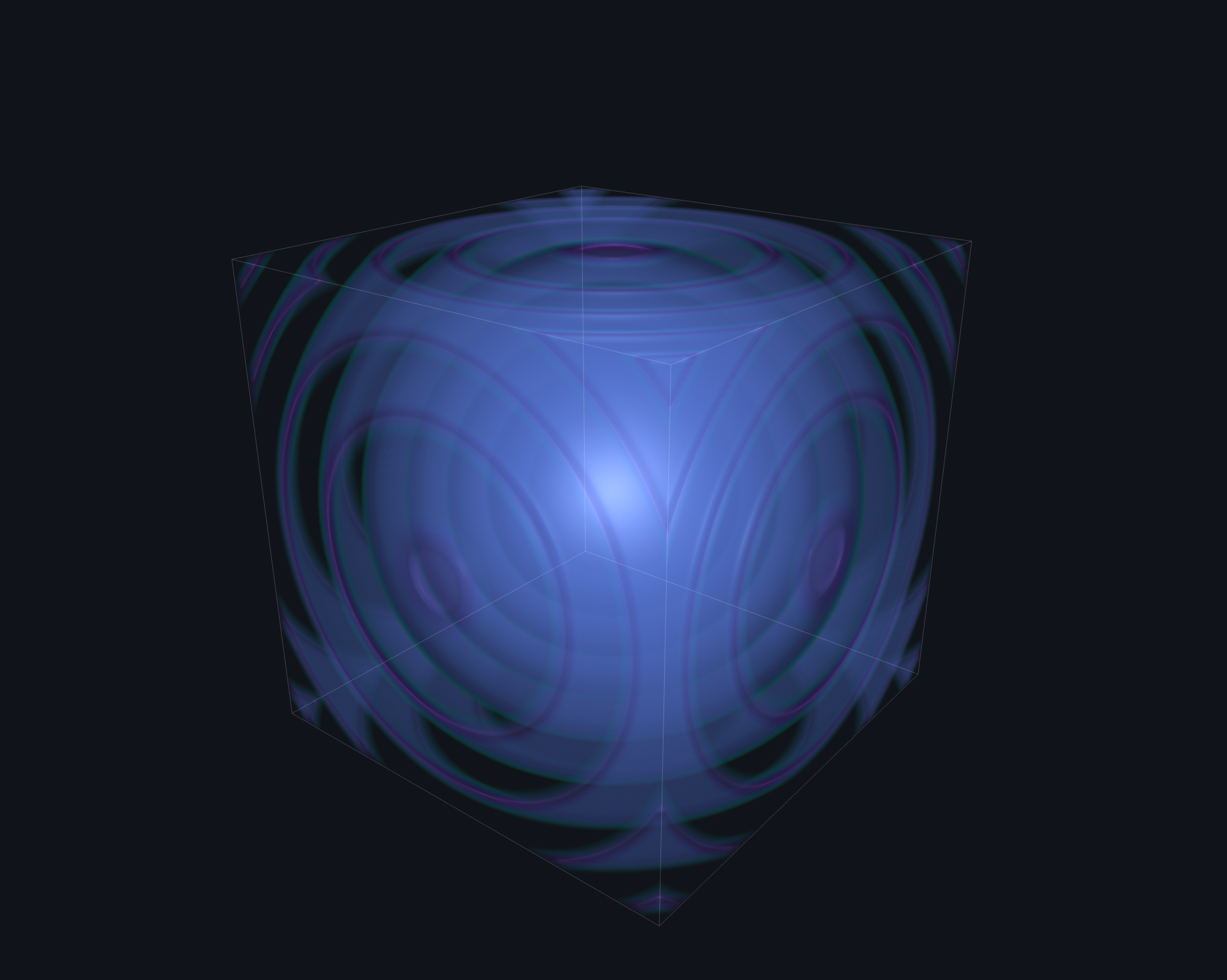

Concentric shells, DVR
