estop spec + fall and haywire conditions

[AaryanAgrawal]

Nothing in dimos notices when a robot falls over or when a policy drives a joint far faster than it should. ControlCoordinator.set_estop() already stops every task, but nothing automatic ever calls it, and no G1 task implements it, so on a G1 it reaches nothing.

This adds conditions at both ends and makes the shared path solid.

  a module           G1WholeBodyConnection sees the IMU at 500 Hz
    fall             tilt off gravity > max_tilt_deg
      |                _estop: EStop  ->  set_estop(True)
      |
  the coordinator    sees every joint each tick, in sim and on hardware
    flailing joint   |dq| > max_joint_speed_rad_s
      |                self.set_estop(True)
      v
  ControlCoordinator.set_estop   ->  every task inert  ->  GrootWBC disarms

Both routes end in the same call, so a condition can live wherever the data is.

The Spec

EStop in dimos/spec/control.py is how a module reaches the stop without importing the coordinator. Declared bare, _estop: EStop, it is a required ref: launching a stack with nothing able to stop the robot raises No module met that spec. before anything moves. Declaring the concrete class instead resolves to None and only fails at the fall; a topic never fails at all.

Note this is a launch-time guarantee, not a CI one. test_all_blueprints imports blueprints but never deploys them, so it does not exercise ref resolution.

set_estop was not actually a latch

Three fixes to the existing fan out, all reachable today:

• It stored nothing. grep -c "_estopped" coordinator.py returned 0, so despite the docstring, a task registered after a trip came up live. The latch now lives on the coordinator and add_task applies it.
• It skipped silently. getattr(task, "set_estop", None) with no else, which is why nobody noticed the G1 had zero coverage. It now logs the task it cannot stop.
• One raising task aborted the loop, leaving every later task running. Each task is now dispatched in isolation.

Config

max_tilt_deg on the G1 connection defaults to 45 deg. max_joint_speed_rad_s on the coordinator defaults to None, off, because a robot agnostic coordinator has no safe default. No existing stack changes behaviour.

Results

Replaying a real recording of two deliberate G1 falls through the tilt check, 176,426 samples at 756 Hz:

stops issued	1
first trip	t=118.36s at 45.10 deg
before the trip	86,691 samples, max tilt 44.99 deg, none tripped
after	89,735 samples including a recovery to 0.43 deg, still latched

For the joint limit: a settled standing G1 peaks at 0.77 rad/s and the whole fall reached 1.77 rad/s, against G1 URDF velocity limits of 20 to 37 rad/s.

dimos/control/, dimos/robot/unitree/g1/, dimos/spec/: 298 passed. The 3 failures are cartesian_ik failing to import GitPython, identical on a clean main worktree. test_all_blueprints: 20 failed / 78 passed, byte identical to main.

Simulated in MuJoCo

Both conditions driven by real physics through the shipped check functions. MuJoCo 3.10.0, the g1_29dof model with visual meshes replaced by boxes, since the STLs live in LFS. Simulated, not hardware.

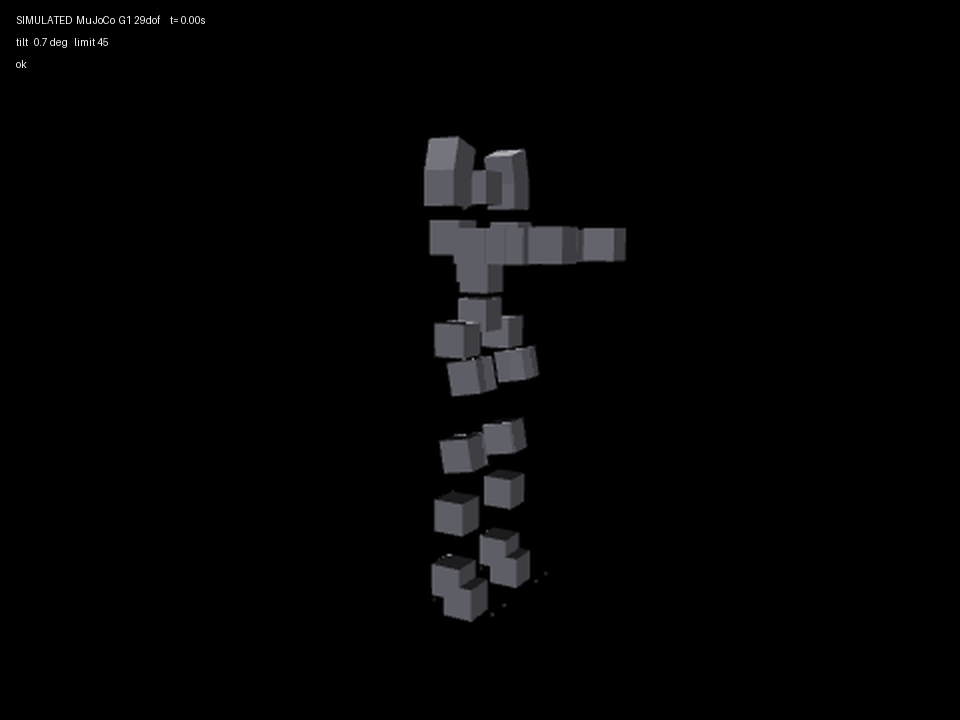

Fall, free base tumbling under gravity. Trips at t=0.330s at 45.2 deg, tilt reaches 137.8 deg, one stop issued and then latched.

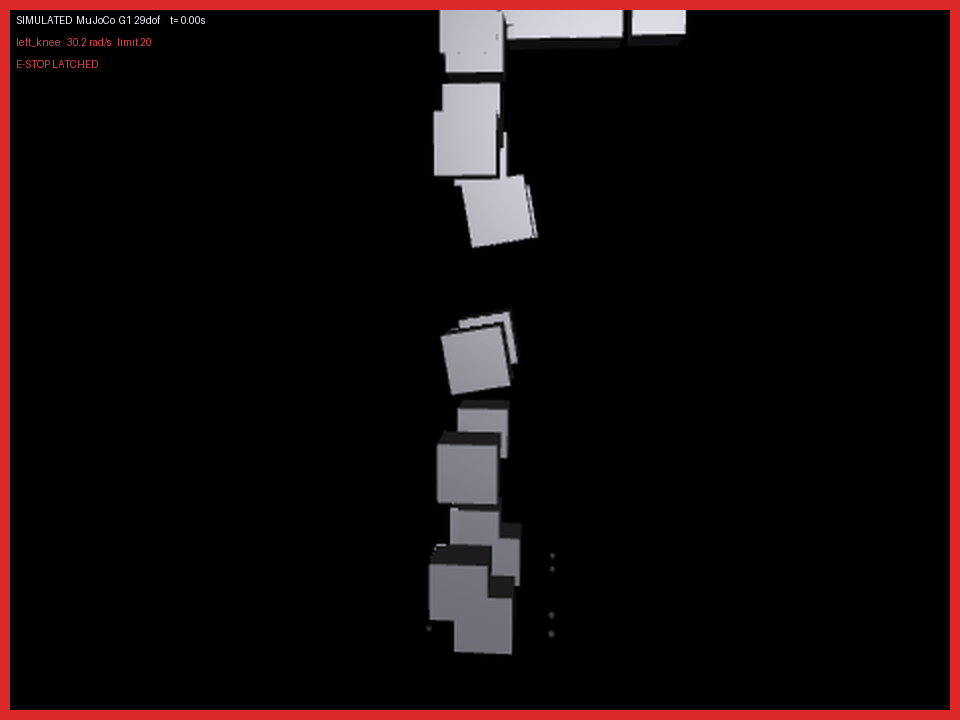

Flailing joint, left knee kicked to 30 rad/s against a 20 rad/s limit. Trips on the first tick past the limit.

Not done

• No blueprint sets max_joint_speed_rad_s yet, so flailing detection is not armed in tree.
• Not run on hardware.
• In a real sim blueprint the backend is MujocoSimModule, not the connection, so the fall check is not wired there. The clip above drives the check directly.
